GESAC Automotive

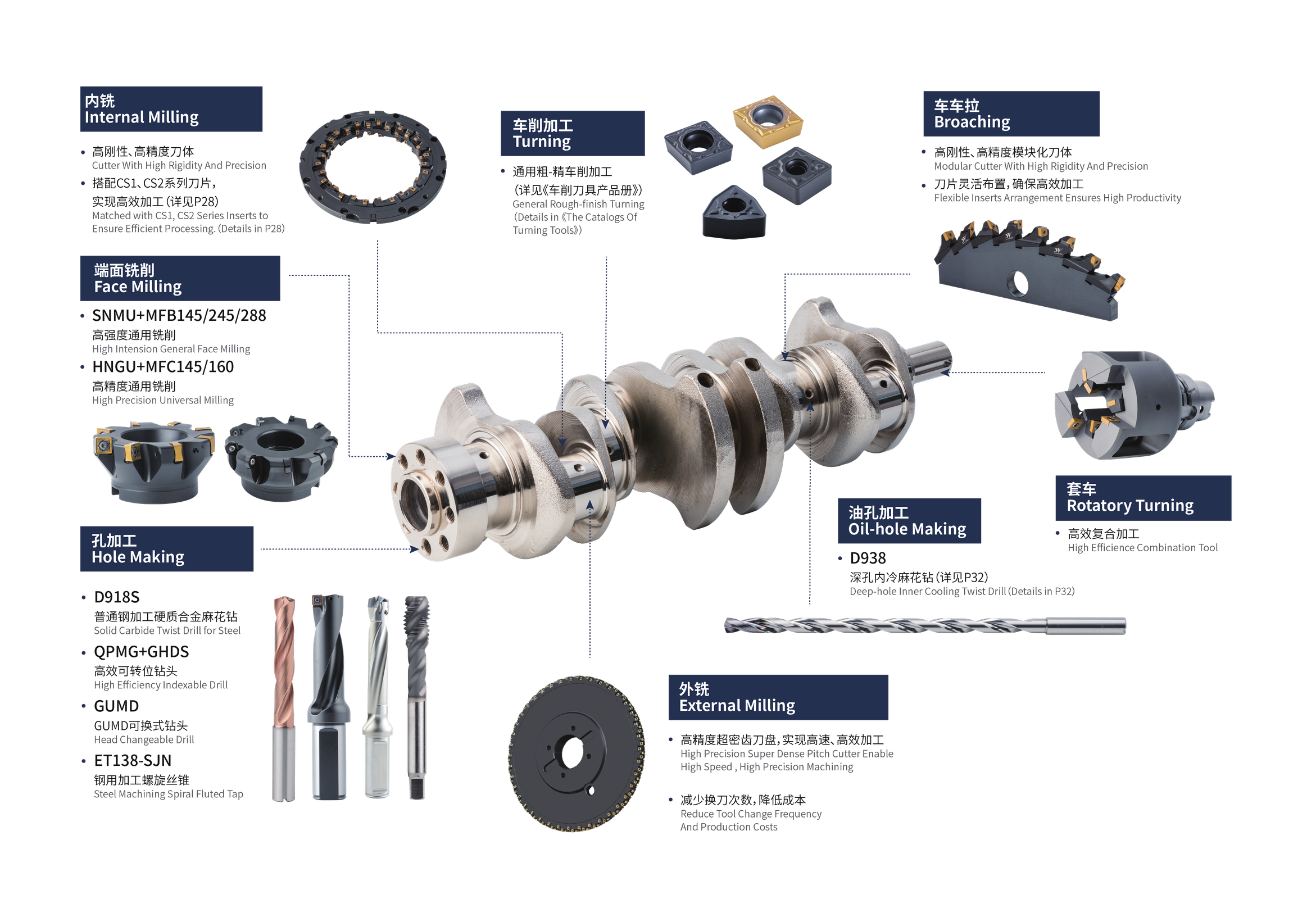

Crankshaft / 曲轴 Machining
Complete cutting tool solution — 厦门金鹭汽车行业解决方案 8.0
| OP | Position | 加工部位 | Insert | Grade | Holder / Cutter | Method |
|---|---|---|---|---|---|---|
| OP10 | Small End Face & Center Hole & Spigot | 小端面 & 中心孔 & 止口 | CNMG120408-DR | G1250V | PCLNR2525M12 | Turning |
| OP20 | Main Journal & Flange OD & Flange Face | 主轴颈 & 法兰外圆 & 法兰端面 | CNMG120412-DR | G1280V | PCLNR2525M12 | Turning |
| OP30 | Connecting Rod Journal (Pin) | 连杆颈 | CCMT09T308-HM | G1250V | SCLCR2525M09 | Turning |
| OP40 | Small End & Pulley End | 小端 & 皮带轮端 | DCMT11T304-HM | G1710V | SDJCR2525M11 | Turning & Grooving |
| OP50 | Keyway Milling | 铣键槽 | APMT1135PDER | G1120 | BAP400R-50-22 | Milling |
| OP60 | Oil Hole Drilling — Main Journal | 钻孔 — 主轴颈 | SDMT09T320 | G1180 | WC-PD-D08 | Drilling |
| OP70 | Pin Journal Undercut Groove | 连杆颈沉割槽 | ZTGD0404MG | G1250V | QZQ2525R04 | Grooving |
| OP80 | Oil Hole Drilling — Pin Journal | 油孔 — 连杆颈 | SOMT060204 | G1180 | WC-PD-D06 | Drilling |
Source: GESAC Automotive Solution 8.0 — Crankshaft Application Sheet
Application Cases
Real machining scenarios. Click any case to find the right tools, or use the sidebar to browse all products.
Automotive
Engine Blocks & Brake Discs
High-volume production of cast iron engine blocks.
CNMGTNMGSNMGCCMT
View tools →
Aerospace
Titanium Structural Parts
Precision machining of Ti-6Al-4V and Inconel 718.
DCMTCCMTVBMT
View tools →
Mold & Die
Hardened Tool Steel
HRC 45-62 hardened steel mold cavities.
VBMTDNMGCNMG
View tools →
Oil & Gas
Stainless Pump Components
Duplex and super-duplex stainless steel pump housings.
CNMGWNMGSPU
View tools →
Medical
Titanium Implants
Ti-6Al-4V ELI hip and knee implants.
DCMTCCMTVBMT
View tools →
General Engineering
Carbon Steel Shafts
Medium-batch turning of SAE 1045/4140 shafts.
CNMGSNMGDCMT
View tools →
Cutting Tools Shop
58 products (15 ZCC + 43 GESAC) · Click cards for details
ZCC
CNMG120408-PM YBG201
80° Rhombic — Steel Finishing, 4 edges
IC 12.70RE 0.8YBG201
from $8.50
ZCC
CNMG120408-DR YBC251
80° Rhombic — Steel Roughing, 4 edges
IC 12.70RE 0.8YBC251
from $7.80
ZCC
CNMG120408-SF YBG202
80° Rhombic — Stainless Finishing
IC 12.70RE 0.8YBG202
from $9.20
ZCC

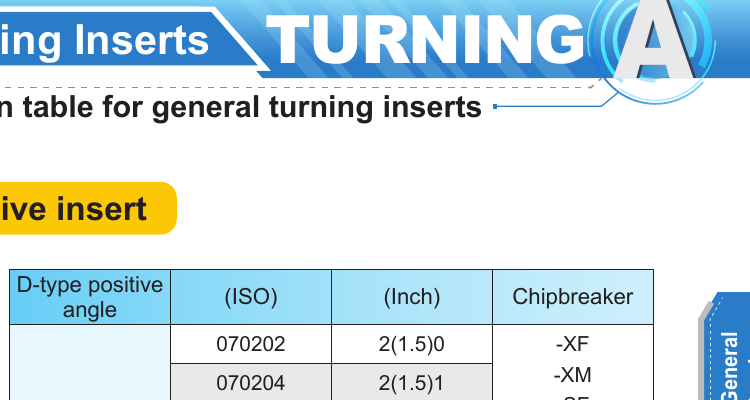

TNMG160408-PM YBG205
60° Triangle — 6 edges
IC 9.525RE 0.8YBG205
from $6.50
ZCC
TNMG160408-DR YBC251
60° Triangle — Steel Roughing
IC 9.525RE 0.8YBC251
from $6.20
ZCC
DNMG150608-PM YBG201
55° Diamond — Profiling
IC 12.70RE 0.8YBG201
from $9.00
ZCC
WNMG080408-DR YBC351
80° Trigon — Heavy Roughing
IC 12.70RE 0.8YBC351
from $7.50
ZCC
SNMG120408-PM YBG201
90° Square — General Purpose
IC 12.70RE 0.8YBG201
from $8.00
ZCC
CCMT09T308-SF YBG202
80° Positive — Stainless
IC 9.525RE 0.8YBG202
from $7.20
ZCC
DCMT11T308-SF YBG201
55° Positive — Steel
IC 9.525RE 0.8YBG201
from $7.00
ZCC
APMT1135PDER YBG202
Shoulder Mill — Steel
IC 11.0RE 0.8YBG202
from $9.50
ZCC
SPMG090408 YBG102
Face Mill — General Purpose
IC 9.525RE 0.8YBG102
from $8.80
ZCC
SPU05-1200 YBG205
Indexable Drill — Ø12mm
IC -RE -YBG205
from $15.00
ZCC
ZSD6.0 YBG202
Solid Carbide Drill — Ø6mm
IC -RE -YBG202
from $12.00
ZCC
16ER AG55 YBG202
External Thread — Stainless
IC -RE -YBG202
from $10.00
GESAC
CNMG120408-QF GP1120
CNMG 80° Rhombic — Steel Medium
IC 12.70RE 0.8GP1120
from $8.50
GESAC
CNMG120408-QM GP1130
CNMG 80° Rhombic — Steel Roughing
IC 12.70RE 0.8GP1130
from $8.50
GESAC
CNMG120408-SM GST7120
CNMG 80° Rhombic — Stainless Finishing
IC 12.70RE 0.8GST7120
from $8.50
GESAC
CNMG120412-QR GP1115
CNMG 80° Rhombic — Heavy Roughing
IC 12.70RE 1.2GP1115
from $8.50
GESAC
CNMG120408-HK GK1125
CNMG 80° Rhombic — Hard Steel
IC 12.70RE 0.8GK1125
from $8.50
GESAC
DNMG150408-QM GP1130
DNMG 55° Diamond — Steel Profiling
IC 12.70RE 0.8GP1130
from $8.50
GESAC
DNMG150608-SM GST7120
DNMG 55° Diamond — Stainless
IC 12.70RE 0.8GST7120
from $8.50
GESAC
SNMG120408-QM GP1130
SNMG 90° Square — General Roughing
IC 12.70RE 0.8GP1130
from $8.50
GESAC
SNMG120408-SM GST7120
SNMG 90° Square — Stainless General
IC 12.70RE 0.8GST7120
from $8.50
GESAC
TNMG160408-QM GP1130
TNMG 60° Triangle — Steel General
IC 9.525RE 0.8GP1130
from $8.50
GESAC
TNMG160408-SM GST7120
TNMG 60° Triangle — Stainless
IC 9.525RE 0.8GST7120
from $8.50
GESAC
VNMG160408-SM GP1115
VNMG 35° Diamond — Profiling/Undercut
IC 9.525RE 0.8GP1115
from $8.50
GESAC
VNMG160404-QM GP1120
VNMG 35° Diamond — Steel Finishing
IC 9.525RE 0.4GP1120
from $8.50
GESAC
WNMG080408-QM GP1130
WNMG 80° Trigon — Heavy Roughing
IC 12.70RE 0.8GP1130
from $8.50
GESAC
WNMG080408-SM GST7120
WNMG 80° Trigon — Stainless
IC 12.70RE 0.8GST7120
from $8.50
GESAC
CCMT09T308-SF GST7120
CCMT 80° Positive — Stainless Finishing
IC 9.525RE 0.8GST7120
from $8.50
GESAC
CCMT09T308-MF GP1130
CCMT 80° Positive — Steel Semi-finishing
IC 9.525RE 0.8GP1130
from $8.50
GESAC
DCMT11T308-SF GST7120
DCMT 55° Positive — Profiling/Finishing
IC 9.525RE 0.8GST7120
from $8.50
GESAC
DCMT11T304-HF G1710V
DCMT 55° Positive — Hard Turning
IC 9.525RE 0.4G1710V
from $8.50
GESAC
VBMT160408-SF G1710V
VBMT 35° Diamond — Fine Boring
IC 9.525RE 0.8G1710V
from $8.50
GESAC
VBMT160404-MF GP1120
VBMT 35° Diamond — Steel Finishing
IC 9.525RE 0.4GP1120
from $8.50
GESAC
SCMT09T308-MF GP1130
SCMT 90° Square — General Positive
IC 9.525RE 0.8GP1130
from $8.50
GESAC
TCMT16T308-MF GP1120
TCMT 60° Triangle — General Positive
IC 9.525RE 0.8GP1120
from $8.50
GESAC
APMT1135PDER G1120
Shoulder Mill — 90° High-Feed
IC 11.0RE 0.8G1120
from $8.50
GESAC
RCMX2006MO G1180
Round Insert — Cast Iron Face Mill
IC 20.0RE -G1180
from $8.50
GESAC
LNMX301120 G1250V
LNMX High-Feed Mill — Universal 4-Edge
IC 30.0RE 2.0G1250V
from $8.50
GESAC
SOET120520 G1120
SOET Positive 4-Edge — Steel
IC 12.0RE 0.8G1120
from $8.50
GESAC
SDMT09T320 G1180
Indexable Drill Insert — CI Periphery
IC 9.525RE 0.8G1180
from $8.50
GESAC
D938-0800 G1250V
D938 Solid Carbide Drill Ø8mm — Steel
IC -RE -G1250V
from $8.50
GESAC
D928-1000 G1180
D928 Solid Carbide Drill Ø10mm — Cast Iron
IC -RE -G1180
from $8.50
GESAC
D966-1200 G1250V
D966 Solid Carbide Drill Ø12mm — Aluminum
IC -RE -G1250V
from $8.50
GESAC
D998-0600 GK1120
D998 Solid Carbide Drill Ø6mm — Hardened Steel
IC -RE -GK1120
from $8.50
GESAC
GUMD-2500-3D GP1120
GUMD Modular Drill Ø25mm 3×D — Steel
IC -RE -GP1120
from $8.50
GESAC
GHDS-3200-3D G1180
GHDS Indexable Shallow Hole Ø32mm — CI
IC -RE -G1180
from $8.50
GESAC
GSD-3000 GP1120
GSD Spade Drill Ø30mm — General
IC -RE -GP1120
from $8.50
GESAC
GT-300-GP GP1120
GT Series Parting Blade — Steel
IC -RE -GP1120
from $8.50
GESAC
ZTGD0404MG G1250V
ZTGD Grooving Insert 4mm — Stainless
IC -RE -G1250V
from $8.50
GESAC
M6×1.0 G1250V
M6 Spiral Flute Tap — Stainless Blind Hole
IC -RE -G1250V
from $8.50
GESAC
ET138-M10×1.5 G1250V
ET138 Spiral Fluted Tap — Steel
IC -RE -G1250V
from $8.50
GESAC
ET168-M8×1.25 G1120
ET168 Spiral Pointed Tap — Steel Through Hole
IC -RE -G1120
from $8.50
GESAC
16ER AG60 G1250V
16ER External Thread Insert — ISO Metric
IC -RE -G1250V
from $8.50
GESAC
CNGA120408 PCBN-B
PCBN Insert — Hardened Steel HRC 55-65
IC 12.70RE 0.8PCBN-B
from $35.00
GESAC
CCGW09T308 PCD-D
PCD Insert — Aluminum/Silicon Alloy
IC 9.525RE 0.8PCD-D
from $42.00
